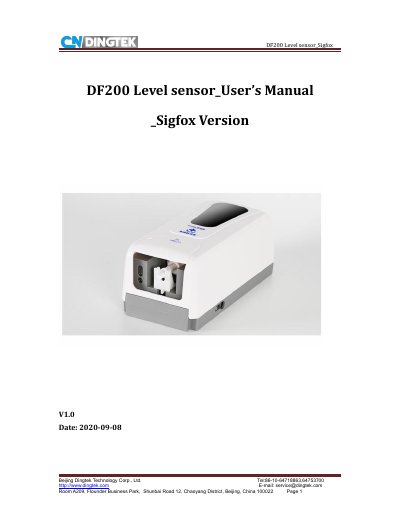

This manual covers the setup, installation, power connection, and operation of the Dingtek DF200 Sigfox level sensor.
The Dingtek DF200 is a non-contact infrared level sensor designed for use in liquid dispensers, such as hand sanitizers. It monitors liquid levels and battery status, reporting data via the Sigfox network. The device features default parameters for heartbeat intervals, periodic detection, and alarm thresholds for both liquid and battery levels.
| Power Supply (Battery) | four AA batteries |
|---|---|
| Power Supply (External) | 6V, 1A |
| Liquid Alarm Threshold | 25% |
| Battery Alarm Threshold | 20% |
| Default Reporting Interval | 24 hours |
The device may not have a battery connected, or the gateway is not connected to the network server, or the device is too far from the gateway.
You can power it using four AA batteries or by plugging the attached 6V, 1A power supply into the DC hole and toggling the switch to ON.
The default threshold is 25%; if the liquid level is lower than 25%, an alarm is triggered.
