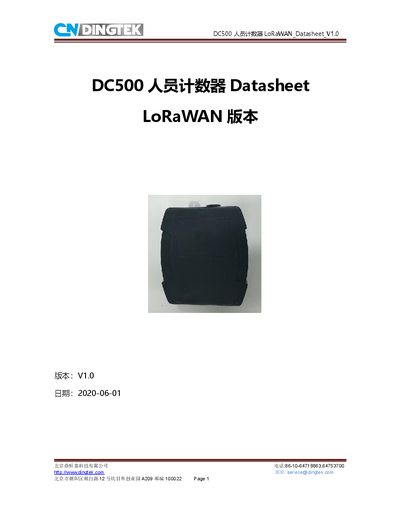

Datasheet for the Dingtek DC500 personnel counter featuring LoRaWAN connectivity, PIR detection, and support for multiple global frequency bands.
The Dingtek DC500 is a personnel counter designed for counting people entering and exiting various locations such as supermarkets, malls, and museums. It utilizes a built-in LoRaWAN module to transmit data to cloud servers, enabling real-time monitoring and over-limit alarms. The device supports multiple frequency bands including CN470, EU433, EU868, and others, operating with low power consumption and high sensitivity. This manual is written in Chinese.
| Dimensions | 80*78*30mm |
|---|---|
| Shell Material | ABS |
| Detector Principle | PIR Human Infrared Induction |
| Delay Time | 2s |
| Distance | Within 5 meters |
| Wireless Method | LoRaWAN |
| Operating Mode | ClassA |
| Frequency Bands | CN470, EU433, EU868, IN865, AU915, US915, AS923, KR920 |
| Activation Method | OTAA or ABP |
| Communication Distance | 3km (Line of Sight) |
| Power Option I | Built-in 8000mAh Battery |
| Power Option II | 6-13.8VDC External Power |
| Operating Temperature | -20~+60°C |
| Storage Temperature | -40~+85°C |
The DC500 supports CN470, EU433, EU868, IN865, AU915, US915, AS923, and KR920.
The internal battery can work for over one year with 50 uploads per day.
No, the battery is non-rechargeable and must not be charged.
