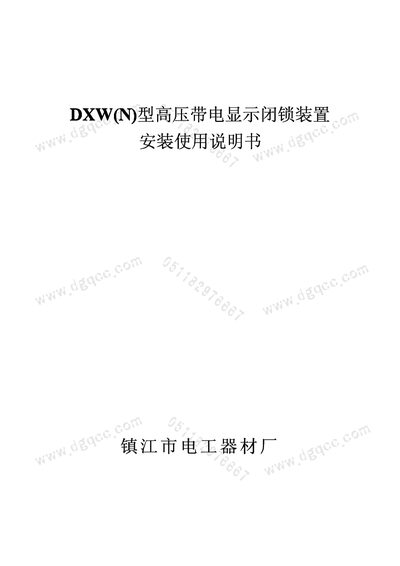

This manual explains the overview, specifications, installation, wiring, and troubleshooting of the DGQCC DXW(N) high‑voltage live‑display lock device.
The DGQCC DXW(N) is a non‑contact, sensor‑type high‑voltage live‑display lock designed to indicate energized conditions and prevent accidental operation of electrical equipment. It works for AC 50 Hz systems with rated voltages from 40.5 kV up to 550 kV and can be installed both outdoors and indoors.
The guide covers environmental requirements, main technical parameters, mechanical structure, wiring diagrams, installation steps, adjustment of sensitivity, and common fault diagnosis. It also describes how the device interfaces with various anti‑misoperation locks such as electromagnetic, mechanical program, and micro‑computer locks. This manual is written in Chinese.
| Rated voltage | 40.5 kV – 550 kV |
|---|---|
| Rated frequency | 50 Hz |
| Power consumption | 5 W (static), <10 W (dynamic) |
| Working power supply | AC 220 V or DC 220 V |
| Installation distance (for 40.5 kV) | 45 ± 5 mm |
The device can operate outdoors with ambient temperatures from +40 °C down to –40 °C.
The lock’s static power consumption is 5 W and the maximum dynamic consumption is less than 10 W.
The device is rated for a frequency of 50 Hz.
Yes, it can be combined with electromagnetic locks, mechanical program locks, and micro‑computer locks to provide forced lockout.
