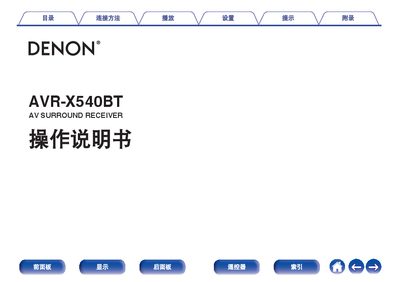

The Denon AVR‑X540BT user manual explains setup, connections, playback, settings and troubleshooting for the AV surround receiver.
This manual provides step‑by‑step instructions for installing and operating the Denon AVR‑X540BT AV surround receiver. It covers connecting speakers, HDMI devices, Bluetooth sources, and configuring audio and video settings.
Additional sections describe the front‑panel controls, remote‑control functions, power‑saving features, firmware updates, and warranty information, with a full specifications table at the end of the document.
| Front‑channel rated output | 70 W + 70 W (8 Ω, 20 Hz–20 kHz, 0.08 % THD) |
|---|---|
| Center‑channel rated output | 70 W (8 Ω, 20 Hz–20 kHz, 0.08 % THD) |
| Maximum output (driven 2 channels) | 110 W + 110 W (6 Ω, 1 kHz, 10 % THD) |
| Power supply | AC 220 V, 50 Hz |
| Power consumption (normal) | 310 W |
| Standby power consumption | 0.1 W |
| Dimensions (W × H × D) | 197 mm × 44 mm × 47 mm |
| Weight | 7.5 kg |
| HDMI inputs / outputs | 5 HDMI inputs, 1 HDMI output |
The AVR‑X540BT has five HDMI inputs and one HDMI output for connecting multiple video sources.
Yes, the manual includes an automatic speaker‑setup program that detects speaker type and distance, simplifying installation.
