Dacai DC80480K070_2001_0X(T/C) Industrial Touchscreen Datasheet

Technical datasheet for the Dacai DC80480K070_2001_0X(T/C) 7‑inch industrial touchscreen with RS232 and USB/SD upgrade options.

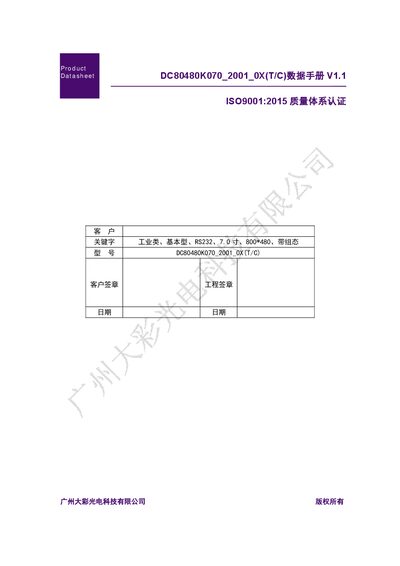

Dacai DC80480K070_2001_0X(T/C) Industrial Touchscreen Datasheet - cover page
Brand
Dacai
Category
Industrial Robot
Document type
Datasheet
Language
Chinese
Pages
19
File format
PDF
File size
2.7 MB
Published
28 September, 2026
Updated
28 September, 2026
MD5 checksum
1B49E3584FFA79088F9EC5018019B714
PDF
Dacai DC80480K070_2001_0X(T/C) Industrial Touchscreen Datasheet PDF

About this manual

The Dacai DC80480K070_2001_0X(T/C) is a 7.0‑inch industrial touchscreen featuring an 800×480 pixel display, 65K colors, and a capacitive touch panel. It is designed for harsh environments with a wide operating voltage range (5‑40 V) and robust RS232 communication.

The datasheet provides hardware specifications, installation diagrams, debugging tools, reliability test results, and development software information, including a virtual serial port simulator and customizable firmware options. This manual is written in Chinese.

What's inside

  • Hardware Overview
  • Product Specifications
  • Installation Diagram
  • Debugging Tools
  • Reliability Testing
  • Development Software
  • Virtual Serial Port Simulation
  • Customization Options

Specifications

Display size7.0 inches
Resolution800 × 480 pixels
Communication interfaceRS232 (XH2.54‑) with USB/SD upgrade
Color depth65 K colors

Frequently asked questions

What is the display size and resolution?

The screen is 7.0 inches with a resolution of 800 × 480 pixels.

Which communication interfaces does the touchscreen support?

It supports RS232 (XH2.54‑) and can be upgraded via USB or SD card.
