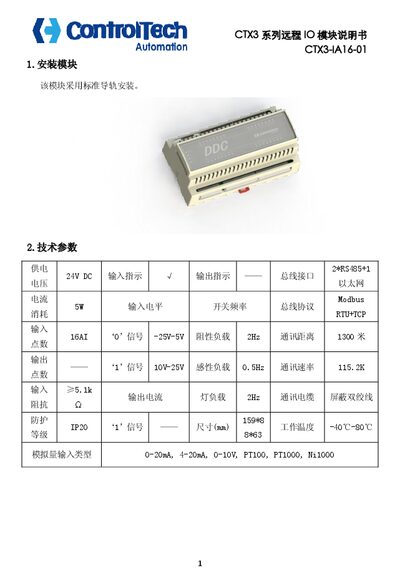

The CTX3 CTX3-IA16-01 Remote I/O Module Manual provides installation steps, technical specifications, bus configuration, system connections, and fault…
This manual describes how to install the CTX3-IA16-01 remote I/O module, outlines its technical parameters, and explains the bus configuration and system wiring. It also includes troubleshooting guidance for common fault indications.
Key sections cover power requirements, communication settings, input/output point definitions, and physical dimensions, helping users integrate the module into Modbus RTU/TCP networks and ensure reliable operation. This manual is written in Chinese.
| Supply Voltage | 24 V DC |
|---|---|
| Power Consumption | 5 W |
| Bus Interface | 2×RS485 + 1 Ethernet |
| Communication Distance | 1300 m |
| Communication Speed | 115.2 kbps |
| Number of Input Points | 16 AI |
| Operating Temperature | -40°C to 80°C |
| Dimensions (mm) | 159×8×8×63 mm |
It indicates that the bus address is set to 0 and should be corrected.
Check that power is supplied and that the power module is not damaged.
Use the DIP switches (DIP8‑DIP1) to set the desired address as shown in the address table.
