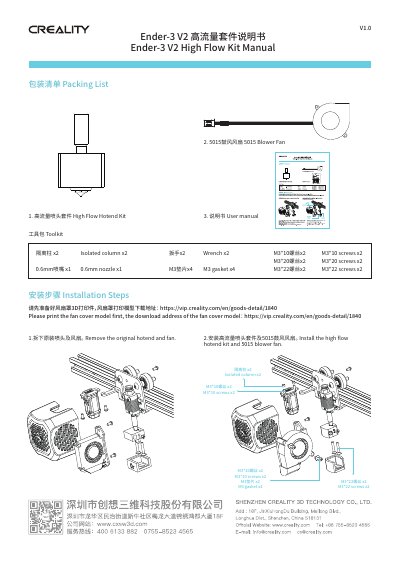

Installation guide for the Creality Ender‑3 V2 High Flow Kit, including parts list and step‑by‑step assembly instructions.
This manual provides the packaging list and detailed installation steps for the Ender‑3 V2 High Flow Kit, which adds a high‑flow hotend and a 5015 blower fan to the printer. It also includes a toolkit of required hardware and instructions for preparing a 3D‑printed fan cover.
Users should first print the fan cover using the provided download link, then follow the step‑by‑step procedure to remove the original hotend and fan, install the new components, and secure all hardware with the supplied screws and gaskets. This manual is written in Chinese.
| Nozzle size | 0.6 mm |
|---|---|
| Blower fan model | 5015 |
| Screw type | M3*10 |
