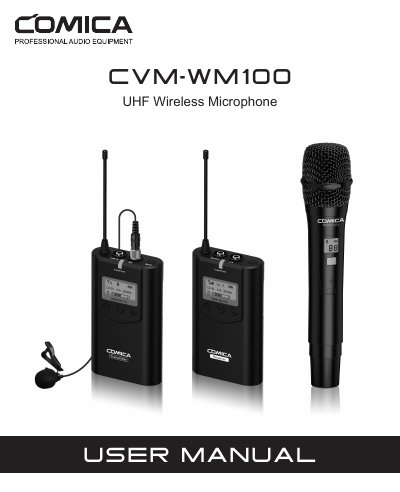

The COMICA WM100 UHF wireless microphone user manual provides setup, operation, specifications, and safety instructions.
The WM100 is a UHF wireless microphone system that includes a lavalier transmitter, a hand‑held transmitter, and a receiver. It operates in the 520‑534 MHz band with up to 48 channels and a transmit power of 15 dBm, offering a working range of up to 100 m in open areas. The manual lists main features such as real‑time monitoring, adjustable RF strength, muting mode, and a high‑resolution LCD display.
The guide explains how to install the antenna, insert two AA batteries, connect accessories, and interpret the screen and indicator lights. Safety notes advise keeping the transmitter at least 10 cm from the receiver, protecting the antenna, avoiding rain, and turning off nearby Wi‑Fi. It also includes a packing list, accessory details, and technical parameters such as frequency response, signal‑to‑noise ratio, and operating temperature.
| Frequency range (TX/RX) | 520.000 MHz ~ 534.100 MHz |
|---|---|
| Number of channels | 48 |
| Battery type | Two AA batteries |
| Dimensions (receiver) | 110 × 65 × 25 mm |
| Signal‑to‑noise ratio | >65 dB |
| Audio distortion | <0.5 % |
| Audio latency | <20 ms |
| Frequency response | 20 Hz ~ 18 kHz |
The WM100 can work up to 100 m in an open area (about 60 m with obstacles).
Keep the transmitter at least 10 cm away from the receiver; otherwise the receiver will protect itself by shutting down the wireless signal.
Set the RF strength to ‘LOW’ on the transmitter when operating over short distances.
The system is powered by two AA batteries.
