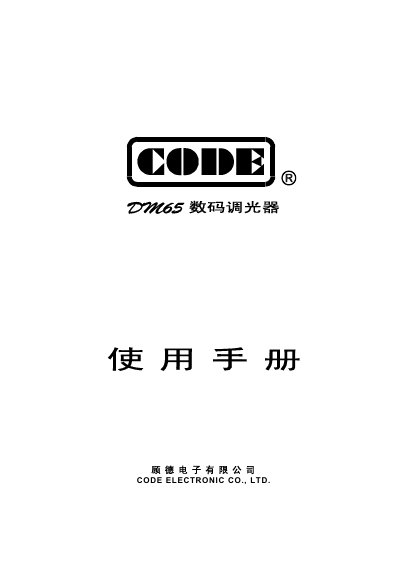

This manual provides installation, connection, and operation instructions for the CODE DM65 digital dimmer, covering DMX-512 and 0-10V control modes.
The CODE DM65 digital dimmer is a microcomputer-controlled lighting device designed for high-reliability applications such as television studios, theaters, and advertising photography. It supports both DMX-512/1990 digital control signals and 0~10V analog control signals, featuring advanced overcurrent protection and soft-start technology to ensure safe and stable operation. This manual is written in Chinese.
| Dimming Channels | 6 channels |
|---|---|
| Channel Load | Max 4KW per channel |
| Cooling Method | Forced air cooling |
| Control Signals | 0~10V Analog and DMX-512/1990 Digital |
| Power Supply | 3-phase/Single-phase AC, 380V/220V, 50Hz |
| Power Consumption (No Load) | 27W |
| Operating Temperature | 0~50 ℃ |
| Dimensions | 483mm W x 133mm H x 405mm D (3U) |
| Weight | 20Kg |
It supports both 0~10V analog control signals and DMX-512/1990 standard digital control signals.
The maximum load is 4KW per output channel.
The unit has 6 dimming channels.
The operating temperature range is 0 to 50 degrees Celsius.
