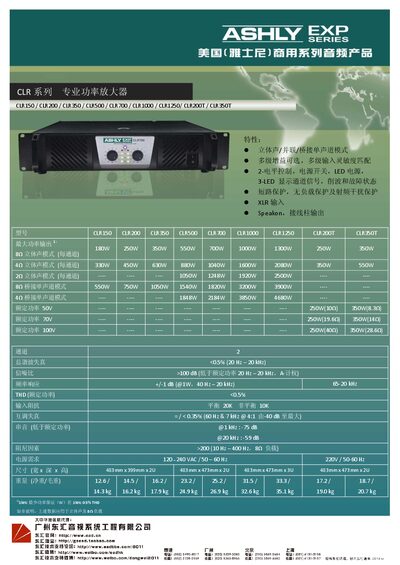

Specification sheet for CLR series professional power amplifiers with features, power ratings and protection details.
The CLR series professional power amplifiers offer stereo, parallel and bridged mono operation with selectable multi‑stage gain and input sensitivity matching. They include short‑circuit, no‑load and RF‑interference protection, XLR inputs and Speakon/terminal outputs.
The sheet lists maximum power output for various impedances, total harmonic distortion below 0.5 %, signal‑to‑noise ratio over 100 dB, and detailed dimensions, weight and power‑supply requirements for each model in the series. This manual is written in Chinese.
| Maximum Power Output (8Ω Stereo) | 180W – 1000W |
|---|---|
| Total Harmonic Distortion | <0.5% (20 Hz – 20 kHz) |
| Signal‑to‑Noise Ratio | >100 dB |
| Frequency Response | ±1 dB (40 Hz – 20 kHz) |
| Input Impedance (Balanced) | 20 kΩ |
| Power Supply | 120 ~ 240 VAC, 50–60 Hz |
| Dimensions (W×D×H) | 483 mm × 399 mm × 2U |
| Net Weight | 12.6 kg |
The amplifiers provide short‑circuit protection, no‑load protection and RF‑interference protection.
They feature XLR inputs and Speakon or terminal outputs.
The signal‑to‑noise ratio is greater than 100 dB.
They operate from 120 ~ 240 VAC at 50–60 Hz.
