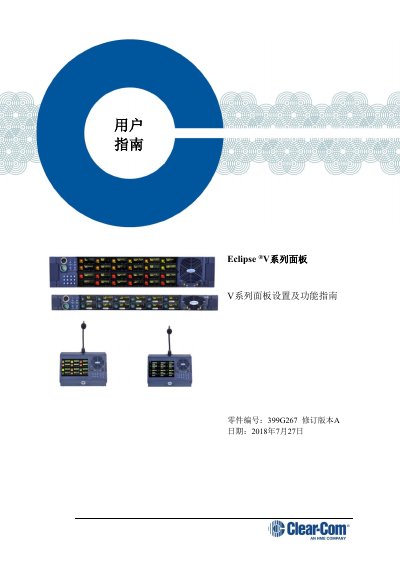

The Clear‑Com V Series Panel User Manual provides safety, installation, wiring, IP configuration and operation instructions for Eclipse V series panels.
This manual covers all aspects of the Eclipse V Series panels, including important safety instructions, detailed installation steps, wiring diagrams, and connection options for both analog and IP networks. It also explains the menu system, panel controls, and maintenance procedures.
Additional sections describe compliance information, specifications of connectors and cables, and a comprehensive terminology glossary to help users understand the panel’s functions and configuration options. This manual is written in Chinese.
| Power connector type | IEC C13 (3‑pin, center ground) |
|---|---|
| Power cable standard | IEC60320 IEC320/C13; UL817 (US) |
The panel requires a power cable with an IEC C13 connector on one end and a standard power plug on the other, following IEC60320/IEC320 C13 standards and UL817 in the US.
