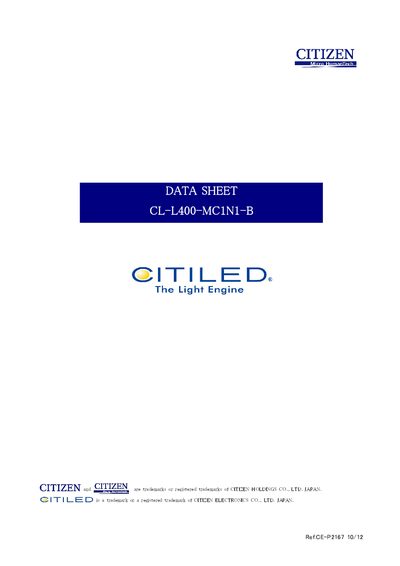

This datasheet details the specifications, performance characteristics, reliability tests, and handling precautions for the Citizen CL-L400-MC1N1-B…
The document provides technical data for the Citizen CL-L400-MC1N1-B LED package, including absolute maximum ratings, electro-optical characteristics such as luminous flux and forward voltage, and physical dimensions. It specifies that the device operates with a typical luminous flux of 124 lm at 350 mA and has a correlated color temperature (CCT) of 5000K.
The datasheet also outlines reliability testing criteria for conditions like high-temperature storage and thermal shock, along with detailed taping and packing specifications. It includes critical handling precautions regarding static electricity sensitivity (ESD over 1000V), soldering profiles for lead-free processes, and eye safety guidelines based on IEC 62471 standards.
| Luminous Flux | 124 lm @ 350 mA |
|---|---|
| Correlated Color Temperature (CCT) | 5000K |
| Color Rendering Index (CRI) | Ra 80 min |
| Thermal Resistance (Junction-Solder) | 9 C/W |
| Forward Current (Max) | 600 mA |
| Junction Temperature (Max) | 120 C |
| Storage Temperature Range | -40 ~ +100 C |
| Operating Temperature Range | -30 ~ +85 C |
| ESD Sensitivity (HBM) | Over 1000V |
| Quantity per Reel | 4000 pcs/reel |
The recommended melting temperature for lead-free soldering paste is between 216 and 220 C.
Yes, the document states that the product is RoHS Compliant.
A constant current is recommended as an applying driving current to this product.
