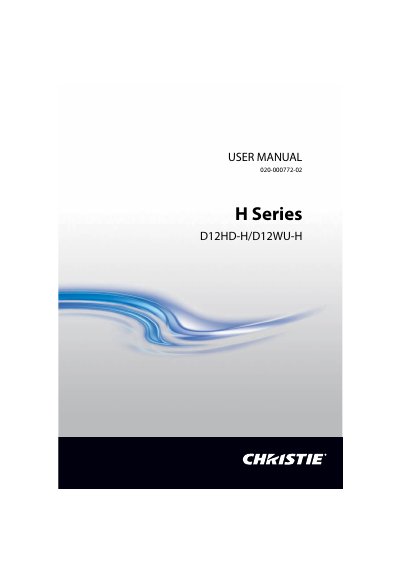

Christie H Series D12HD-H/D12WU-H Projector User Manual

User manual for the Christie H Series D12HD-H/D12WU-H projector covering safety, installation, operation, maintenance and troubleshooting.

Brand: Christie
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 93
File format: PDF
File size: 12 MB
Published: 05 October, 2026
Updated: 05 October, 2026
MD5 checksum: 665180A06DD06491E725962899EE8B9F
PDF: Christie H Series D12HD-H/D12WU-H Projector User Manual PDF

About this manual

This manual provides comprehensive instructions for the Christie H Series D12HD-H/D12WU-H projector. It includes safety warnings, detailed installation steps, operation menus, lamp maintenance, and troubleshooting procedures.

The document also lists technical specifications such as supported video inputs, resolutions, lamp modes, and environmental limits, helping users configure the projector for optimal performance in fixed‑installation environments.

What's inside

Safety
Introduction
Installation
Operation
Troubleshooting
Specifications
Regulatory Information
Maintenance
Lamp Settings
Input Switching & PIP

Specifications

Supported video inputs	VGA, BNC, HDMI, ½ DVI, DisplayPort, 3G‑SDI, HDBaseT, CVBS
Maximum resolution	1920×1200 (WUXGA) at 60 Hz
Lamp modes	Constant Power, Constant Intensity, ECO mode
Lamp life counter	Tracks Lamp 1 Hours, Lamp 2 Hours, Total Projector Hours
Operating temperature range	0 °C to 40 °C

Frequently asked questions

How can the lamp be switched automatically after a failure?

The lamp auto‑switch can be set to activate on failure only, at power‑up, or after a configurable number of hours (5‑3000 h).
