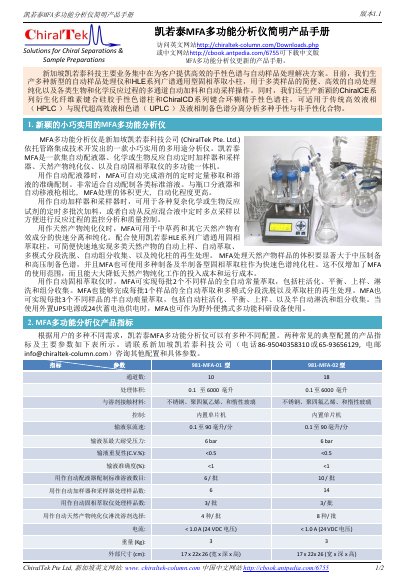

This leaflet describes the ChiralTek MFA-01 and MFA-02 multi-function analyzers, which serve as automated liquid handlers, samplers, and purification…
The ChiralTek MFA is a compact, multi-purpose analyzer developed by ChiralTek Pte. Ltd. It integrates functions of an automatic liquid dispenser, a timed sampler for chemical or biological reactions, a natural product purifier, and an automated solid-phase extraction (SPE) instrument. The device is designed for use in both laboratory settings and field environments, offering high automation and flexibility with a small footprint. This manual is written in Chinese.
| Channels | 10 (MFA-01) / 18 (MFA-02) |
|---|---|
| Processing Volume | 0.1 to 6000 ml |
| Contact Materials | Stainless steel, PTFE, Inert glass |
| Pump Flow Rate | 0.1 to 90 ml/min |
| Max Pump Pressure | 6 bar |
| Dimensions | 17 x 22 x 26 cm (W x D x H) |
Yes, when powered by an external UPS or a 24V battery, it can be used as a portable research device in the field.
The parts are made of stainless steel, PTFE (Teflon), and inert glass (Pyrex).
