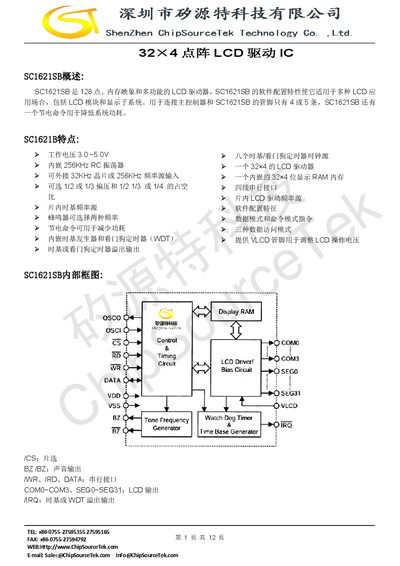

This datasheet describes the ChipSourceTek SC1621SB, a 32x4 dot matrix LCD driver IC featuring software configuration and power-saving commands.
The SC1621SB is a 128-point memory-mapped and multifunctional LCD driver suitable for various applications including LCD modules and display subsystems. It connects to the main controller via only four or five pins and includes a power-down command to reduce system power consumption.
Key features include an embedded 256KHz RC oscillator, support for external crystal or clock sources, selectable bias ratios (1/2 or 1/3) and duty cycles, and an internal time-base generator with a watchdog timer (WDT). The device operates on a supply voltage of 3.0V to 5.0V. This manual is written in Chinese.
| Operating Voltage | 3.0 ~ 5.0V |
|---|---|
| Supply Voltage Range | -0.3V~5.5V |
| Operating Temperature | -25℃~75℃ |
| Storage Temperature | -50℃~125℃ |
| Standby Current (3V) | < 0.1uA |
| System Clock Frequency (Internal RC) | 256 KHz |
| LCD Clock Frequency | FSYS/1024 or FSYS/128 |
The device operates on a supply voltage of 3.0V to 5.0V.
Yes, it has an embedded 256KHz RC oscillator.
Yes, it is designed as one 32x4 LCD driver.
