This document is the enterprise standard for the RM6240C multi-channel physiological signal acquisition and processing system, covering classification…

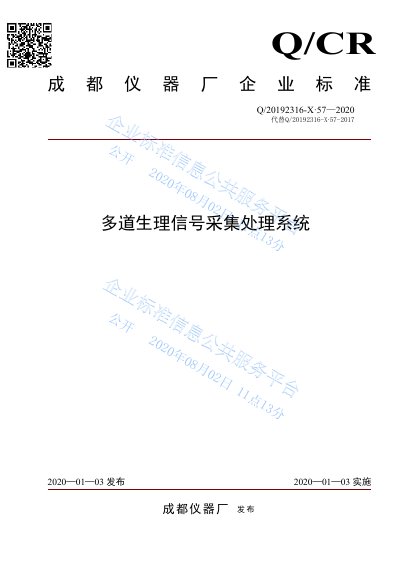

This document is an enterprise standard (Q/CR Q/20192316-X · 57) established by Chengdu Instrument Factory to regulate the multi-channel physiological signal acquisition and processing system. It replaces the 2017 version and serves as the basis for production and sales in the absence of national or industry standards. This manual is written in Chinese.
| Power Supply | AC220V, 50Hz |
|---|---|
| Power Consumption | 300VA |
| Operating Temperature | 10°C ~ 30°C |
| Relative Humidity | ≤ 70% |
| Sampling Rate (Single Channel) | ≥ 400kHz |
| ECG Bandwidth | DC ~ 9kHz |
| Common Mode Rejection Ratio | > 10000 (80dB) |
| Input Noise (20μV range) | ≤ ±3μV |
The system is suitable for multi-channel synchronous detection, recording, and analysis of surface physiological signals such as ECG, blood pressure, and muscle tension.
The instrument is classified as a Class I device.
No, the equipment does not belong to AP or APG types and is classified as ordinary equipment.
