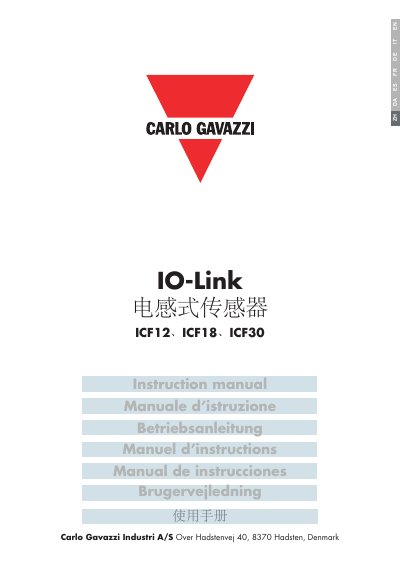

Carlo Gavazzi ICF12/18/30 Inductive Sensors User Manual

This manual provides installation, setup, and usage instructions for Carlo Gavazzi IO-Link inductive proximity sensors models ICF12, ICF18, and ICF30.

Brand: CARLO GAVAZZI
Document type: User Manual
Language: Chinese
Pages: 25
File format: PDF
File size: 1.4 MB
Published: 17 October, 2026
Updated: 17 October, 2026
MD5 checksum: B2971D65F2C88874D4962B70DC7E7D88
PDF: Carlo Gavazzi ICF12/18/30 Inductive Sensors User Manual PDF

About this manual

This user manual serves as a reference guide for the Carlo Gavazzi IO-Link inductive proximity sensors, specifically models ICF12, ICF18, and ICF30. It details how to install, configure, and operate these devices for their intended industrial applications.

The document covers product identification, working modes including Standard Input/Output (SIO) and IO-Link modes, wiring diagrams, debugging procedures, and operational parameters. It also explains the use of IODD files and factory settings. This manual is written in Chinese.

What's inside

Introduction
Product Description
Identification Codes
Working Modes
SIO Mode
IO-Link Mode
Main Functions
Wiring Diagrams
Debugging
IODD Files and Factory Settings

Frequently asked questions

What is the maximum communication cable length for IO-Link?

The IO-Link communication requires a maximum cable length of 20 meters.

What is the maximum rated working distance percentage for setting values?

The setting values can be set to 33%, 50%, 75%, or 100% of the maximum rated working distance.
