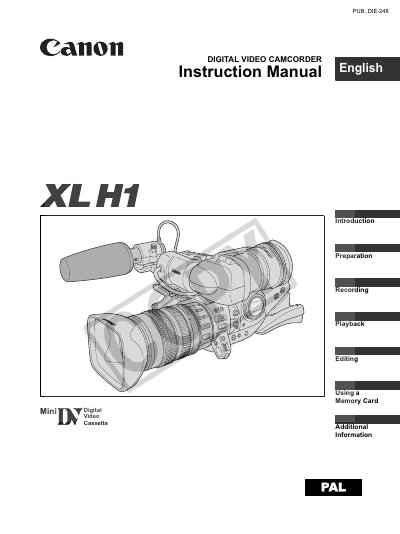

Canon XL H1 Digital Video Camcorder Instruction Manual

The Canon XL H1 digital video camcorder instruction manual provides setup, operation, recording, playback, and maintenance guidance.

Brand: Canon
Category: Other
Document type: User Manual
Language: English
Pages: 157
File format: PDF
File size: 7.5 MB
Published: 06 October, 2026
Updated: 06 October, 2026
Model: XLH1
MD5 checksum: 70178609D90EA8B08F7FC4518785347D
PDF: Canon XL H1 Digital Video Camcorder Instruction Manual PDF

About this manual

This manual covers everything needed to get started with the Canon XL H1 camcorder, including safety warnings, preparation steps, and detailed operating procedures for recording, playback, and editing. It also explains how to use accessories such as the wireless controller, memory cards, and optional lenses.

The document includes specifications for video and audio formats, lens options, power requirements, and dimensions, as well as troubleshooting tips and a system diagram for service personnel.

What's inside

Introduction
Preparing the Camcorder
Recording
Playback
Menu Settings
Specifications
Accessories
Troubleshooting

Specifications

Video Recording System	HDV 1080i / DV
Image Sensor	1/3‑inch CCD, approx. 1.67 M pixels
Maximum Recording Time (60 min cassette)	60 min (SP), 90 min (LP)
Power Supply (rated)	7.4 V

Frequently asked questions

What type of memory cards are supported?

The camcorder works with SD memory cards up to 2 GB and MultiMediaCards (MMC).

What is the maximum recording time on a 60‑minute cassette?

A 60‑minute cassette records up to 60 minutes in SP mode and 90 minutes in LP mode.

Download PDF (7.5 MB)
