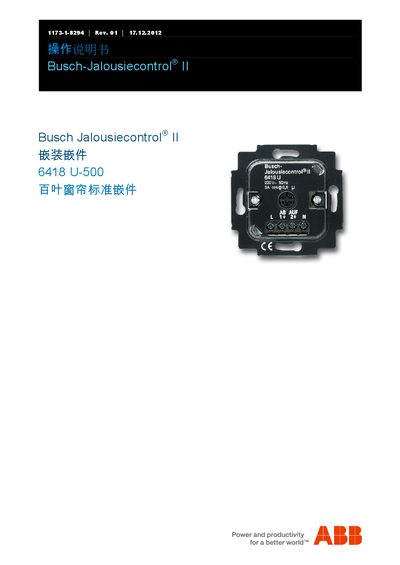

Operating instructions for the Busch Jalousiecontrol II 6418 U-500 module for controlling roller shutters and blinds.
This manual provides instructions for the installation and operation of the Busch Jalousiecontrol II 6418 U-500 module. The device is designed to control tube motors for roller shutters and blinds, supporting both mechanical and electronic end switches. It features a standard timer function with a 3-minute run time and can operate without a neutral wire using a specific capacitor group. This manual is written in German.
| Rated Voltage | 230 V AC ±10 %, 50 Hz |
|---|---|
| Maximum Switching Current | 3 A (cos ϕ 0.5) |
| Rated Power | 690 VA |
| Power Consumption | <1 W |
| Relay Run Time | 3 minutes |
| Relay Switching Interval | 500 ms |
| Protection Class | IP 20 |
| Operating Temperature | 0 ... 35 °C |
The relay run time is 3 minutes.
Yes, it is suitable for operation without a neutral wire.
The maximum switching current is 3 A (cos ϕ 0.5).
