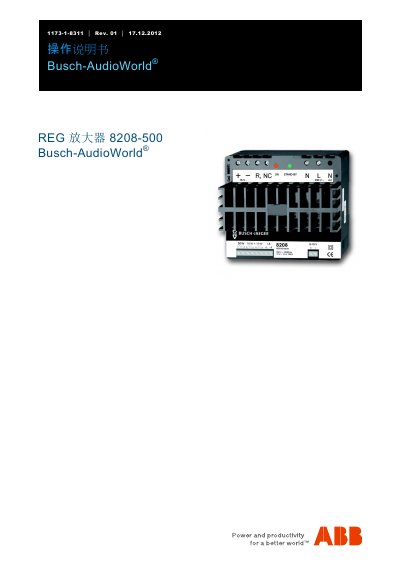

The Busch REG Amplifier 8208-500 user manual provides safety instructions, technical data, installation and wiring details.
This manual explains the safe use and proper installation of the Busch‑AudioWorld® REG Amplifier 8208‑500. It includes warnings about 230 V hazards, required qualifications for installers, and environmental disposal guidelines.
Technical specifications, mounting requirements, wiring diagrams and LED indicator functions are detailed, along with guidance for connecting speakers, power supply and the audio bus. The document also describes DIN‑rail mounting and cable sizing for reliable operation. This manual is written in German.
| Operating voltage | 230 V AC, ±10 %, 50/60 Hz |
|---|---|
| Output power | 2 × 10 W or 1 × 20 W |
| Speaker impedance | Stereo 2 × 16 Ω, Mono 4 × 16 Ω |
| Mounting method | DIN rail (VDE 50022) |
| Upper cable cross‑section | max 6 mm² per 2 wires |
| Lower cable cross‑section | max 4.5 mm² per 2 wires |
| Operating temperature range | 5 °C … 40 °C |
| Dimensions | 7 TE × 18 mm |
| Audio bus cable type | J‑Y(ST)Y n × 2 × 0.8 |
The power must be disconnected and only qualified electrical personnel may install or service the device.
Only persons with the necessary electrical technical knowledge and experience are permitted to install the equipment.
The unit operates on 230 V AC, ±10 %, at 50 / 60 Hz.
