The Brighty YXH/YXHN electric contact pressure gauge specification sheet details dimensions, wiring, ranges, accuracy, and mounting options.

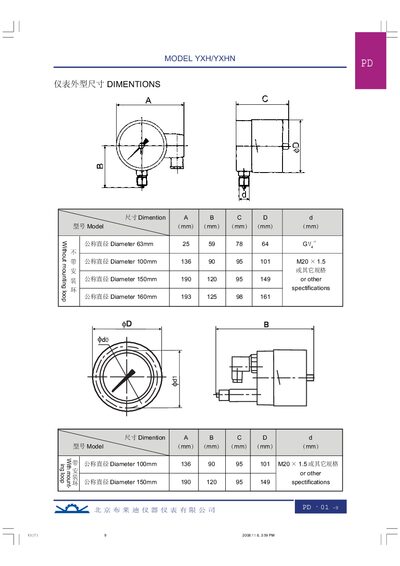

This document provides the technical specifications for the Brighty YXH/YXHN electric contact pressure gauge, including dimensions for various diameters, wiring schemes, and the applicable executive standard JB/T9273-1999. It describes the gauge's construction, materials (stainless steel, oil‑filled vibration‑proof designs), and the range of pressure measurements it can handle.
Additional information covers mounting configurations (bottom, back, and embedded mounting), connection sizes (M14, M20, G1/4, etc.), protection classes (IP54, IP65), and environmental limits such as temperature and humidity. The sheet also lists the gauge's electrical ratings, accuracy, and typical applications in corrosive or high‑vibration environments.
| Maximum Working Voltage | AC 380V or DC 220V |
|---|---|
| Maximum Current | 0.7A – 1A |
| Pressure Range | 0 – 100 MPa |
| Operating Temperature | -40°C to +70°C |
The gauge can operate at up to AC 380 V or DC 220 V.
It is rated for a maximum current of 0.7 A to 1 A.
It measures pressures from 0 to 100 MPa.
