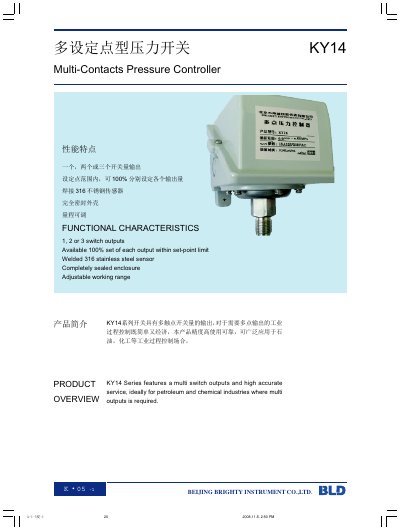

The Brighty KY14 multi-contacts pressure switch product leaflet provides specifications, performance features, and selection options for industrial process…
The KY14 series offers one, two or three SPDT switch outputs with a fully sealed enclosure and adjustable working range, suitable for petroleum and chemical process applications. It features a welded 316 stainless‑steel sensor and a die‑cast aluminum body with epoxy coating.
Technical specifications include an operating temperature of –50 °C to 80 °C, repeatability error of ±1 % of range, rated current of 15 A at 125/250/480 VAC, IP65 protection, and a weight of about 1.3‑3 kg depending on the model. Optional pressure sensors and range selection tables allow customization for various process media and pressure ranges. This manual is written in Chinese.
| Operating temperature | -50 °C to 80 °C |
|---|---|
| Repeatability error | ±1 % of range |
| Enclosure material | Die‑cast aluminum, epoxy coated |
| Switch outputs | 1, 2 or 3 SPDT outputs |
| Rated current | 15 A at 125/250/480 VAC |
| Weight | ≈1.3‑3 kg (model dependent) |
| Enclosure protection | IP65 |
It can provide one, two, or three SPDT switch outputs.
The device operates from –50 °C to 80 °C.
The enclosure is rated IP65.
