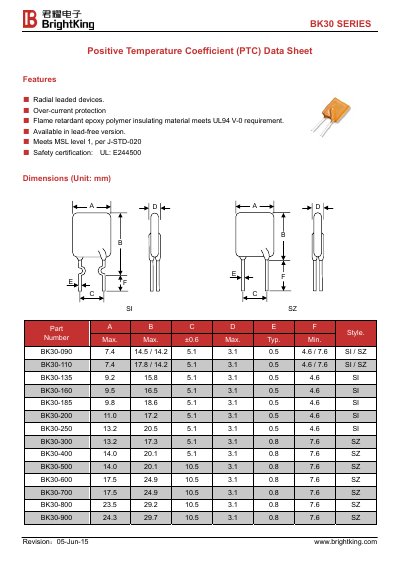

The BrightKing BK30 SERIES data sheet provides specifications, dimensions, electrical characteristics, test procedures, and soldering recommendations for…
The BK30 SERIES data sheet describes a family of radial leaded Positive Temperature Coefficient (PTC) devices with features such as flame‑retardant epoxy polymer (UL94 V‑0), lead‑free versions, and MSL level 1 compliance. Dimensions for each part number are listed along with mechanical characteristics and packaging details.
Electrical characteristics include hold current (IH), trip current (IT), maximum voltage (VMAX), and typical power dissipation for each device. The document also provides thermal derating charts, test procedures, storage recommendations (‑10 °C to +40 °C), and detailed soldering guidelines for both wave and manual processes, as well as reliability test criteria.
| Device type | Radial leaded PTC |
|---|---|
| Flame retardant rating | UL94 V‑0 |
| Lead‑free version | Available |
No, the devices cannot be used for reflow soldering.
Store the devices between –10 °C and +40 °C.
The manual soldering iron should be 30 W or less.
