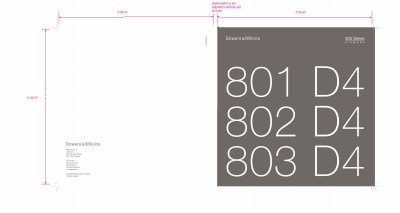

The Bowers & Wilkins 800 Series Diamond User Manual provides unpacking, installation, positioning, connection and safety instructions for the 801 D4, 802 D4…
This manual guides owners of the Bowers & Wilkins 800 Series Diamond loudspeakers through unpacking, handling, and preparation of the speakers. It lists all supplied components, safety precautions, and compliance information.
Detailed sections cover floor‑mount installation, spike and stabiliser adjustment, speaker positioning for stereo and home‑theatre setups, wiring options, tweeter assembly adjustment, and fine‑tuning procedures. The guide also explains how to locate serial numbers and maintain the wood‑veneer finish.
| Speaker models | 801 D4, 802 D4, 803 D4 |
|---|---|
| Mounting type | Floor mounted only |
| Terminal compatibility | 4 mm banana plugs, 6 mm/8 mm spades, or bare wires up to 4 mm |
| Adjustment tools included | T45 stabiliser adjustment wedge tool, metal spike adjustment bar, cleaning cloth |
Each pair comes with 2 midrange grilles, 4 bass grilles, 4 terminal link wires, 4 stabilisers, 4 stabiliser caps, a T45 adjustment tool, a metal spike adjustment bar, and a cleaning cloth.
The serial number is printed on the outer packaging and under the midrange end cap of each speaker.
