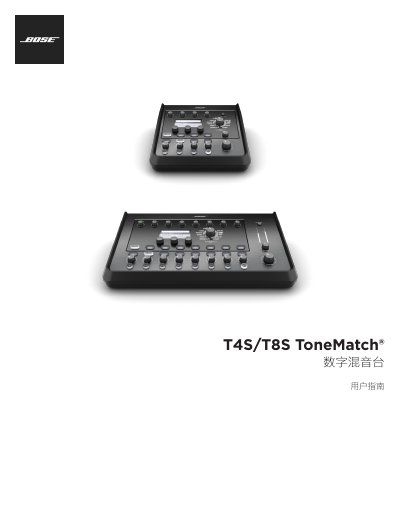

The guide provides safety instructions, setup, connections, operation, and maintenance for the Bose T4S/T8S ToneMatch digital mixing console.
The Bose T4S and T8S ToneMatch digital mixers are compact 4‑ or 8‑channel consoles designed for performers, offering studio‑grade EQ, dynamics, and effects with integrated ToneMatch® processing. The unit features a tactile control surface, LED display, and extensive I/O for flexible stage use.
This user guide covers safety warnings, unpacking, installation of the protective cover, mounting options, digital and analog connections, USB and flash‑drive usage, detailed operation of each channel, global functions, scene management, and troubleshooting steps such as USB connectivity and flash‑drive issues. It also includes cleaning recommendations and technical specifications. This manual is written in Chinese.
| T4S dimensions (L×W×H) | 8.4 in × 7.25 in × 3.25 in (214 mm × 184 mm × 83 mm) |
|---|---|
| T4S weight | 2.1 lb (1.0 kg) |
| A/D and D/A converter resolution | 24‑bit |
| Sample rate | 48 kHz |
| USB interface | USB 2.0 (type‑A to type‑B cable) |
| Computer requirements | Windows 7 or later; macOS 10.5 or later |
To remove, slide the cover forward from the front gap, then lift it off. To reinstall, place the cover on the front and let the magnetic latch close it automatically.
Use a dry soft cloth to clean the exterior; do not use solvents, alcohol, ammonia, or abrasive cleaners.
