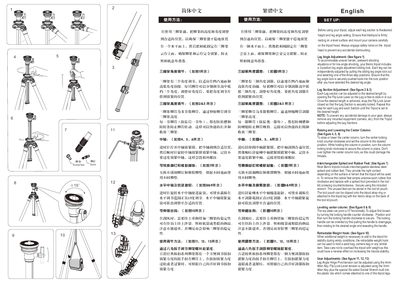

The Benro Classic Plate‑Lock Tripod with Leveling Column User Manual provides setup, adjustment, safety, and maintenance instructions.
This manual explains how to set up the Benro classic plate‑lock tripod, adjust leg angles, extend the center column, and use the interchangeable spiked or rubber feet. It also covers the leveling column, which can be tilted up to ±15° for precise horizon alignment.
Safety guidelines include temperature limits, maximum load warnings, and cleaning procedures. The document also describes how to secure the tripod with the weight hook for windy conditions and how to adjust lock tensions using the supplied Allen keys and wrenches. This manual is written in Chinese.
| Operating Temperature Range | -20 °C to +70 °C |
|---|---|
| Leveling Angle Range | ±15° |
Pull out the 3‑position leg angle adjustment sliding lock, select the desired angle, and push the lock back into place.
Turn the center locking knob counter‑clockwise to loosen, set the column to the desired height, then turn the knob clockwise to lock.
The tripod comes with interchangeable stainless‑steel spiked feet and rubber feet that can be swapped using the included wrench.
Do not use the tripod below –20 °C or above +70 °C.
