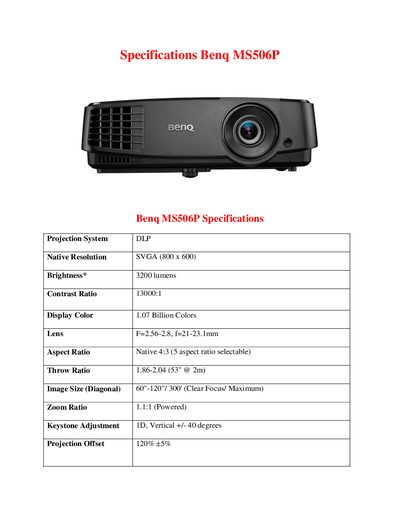

The Benq MS506P projector specifications detail its DLP system, 3200 lumens brightness, SVGA resolution, and extensive connectivity options.
The Benq MS506P is a DLP projector offering 3200 lumens brightness, a contrast ratio of 13000:1, and a native SVGA (800 × 600) resolution. It features a versatile lens with a throw ratio of 1.86‑2.04, 1.1:1 powered zoom, and vertical keystone adjustment of ±40°.
Connectivity includes dual computer inputs, monitor output, composite and S‑Video inputs, audio in/out, USB mini, RS232, and an IR receiver. Power supply supports 100‑240 V AC, with normal consumption of 270 W and eco mode at 220 W. The unit weighs 1.8 kg and measures 283 × 95 × 222 mm.
| Projection System | DLP |
|---|---|
| Native Resolution | SVGA (800 x 600) |
| Brightness | 3200 lumens |
| Contrast Ratio | 13000:1 |
| Lens | F=2.56‑2.8 |
| Throw Ratio | 1.86‑2.04 |
| Zoom Ratio | 1.1:1 (Powered) |
| Keystone Adjustment | 1D vertical ±40° |
| Image Size (Diagonal) | 60"‑120" |
| Dimensions (W×H×D) | 283 x 95 x 222 mm |
| Power Supply | AC100‑240V, 50‑60Hz |
| Power Consumption (Normal) | 270 W |
| Weight | 1.8 kg |
The projector has a brightness of 3200 lumens.
It supports native SVGA (800 × 600) and up to UXGA (1600 × 1200) resolution.
It includes two D‑sub 15‑pin computer inputs, one D‑sub monitor output, composite video, S‑Video, audio in/out, a mini‑USB port, RS232, and an IR receiver.
Normal mode consumes 270 W.
