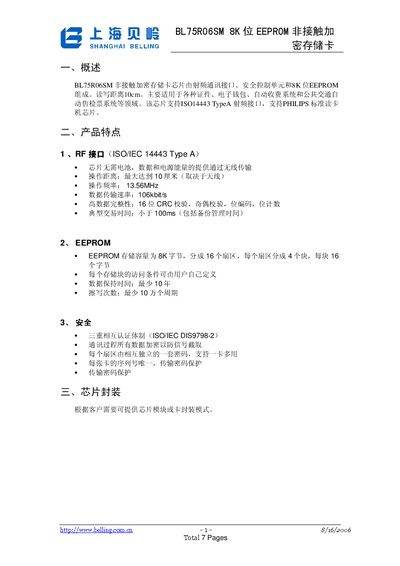

The Belling BL75R06SM manual describes the 8 KB EEPROM contactless encrypted storage card, its features, interface, security and memory operations.
The BL75R06SM is a contactless encrypted storage card chip that integrates an RF communication interface, a security control unit and an 8 KB EEPROM. It is intended for use in ID cards, e‑wallets, automatic fare collection and public‑transport ticketing systems and complies with the ISO/IEC 14443 Type A standard.
The document details the chip’s memory architecture (16 sectors, 4 blocks per sector, 16 bytes per block), the command set for reading, writing, incrementing, decrementing, restoring and transferring data, and the three‑stage mutual authentication mechanism that secures all data transfers. This manual is written in Chinese.
| RF interface standard | ISO/IEC 14443 Type A |
|---|---|
| Maximum operating distance | 10 cm |
| Operating frequency | 13.56 MHz |
| Data transfer rate | 106 kbit/s |
| EEPROM capacity | 8 KB |
| Number of sectors | 16 |
| Blocks per sector | 4 |
| Bytes per block | 16 bytes |
| Data retention time | ≥10 years |
| Write/erase cycles | ≥100 000 cycles |
| CRC check | 16‑bit CRC |
| Security authentication | Triple mutual authentication (ISO/IEC DIS9798-2) |
The chip can operate up to a distance of 10 cm, depending on the antenna.
It provides 8 KB of EEPROM organized into 16 sectors, each with 4 blocks of 16 bytes.
The chip uses a triple mutual authentication scheme defined in ISO/IEC DIS9798-2.
It supports the ISO/IEC 14443 Type A contactless interface.
