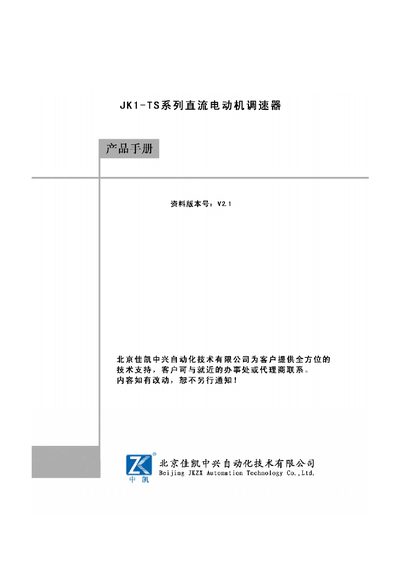

This manual provides safety guidelines, installation, wiring, operation, troubleshooting and maintenance for the JK1-TS series DC motor speed governor.
The JK1-TS series DC motor speed governor from Beijing JK ZTE is a compact, lightweight controller featuring a single‑phase half‑bridge, dual‑loop control and multiple input options. It offers adjustable ramp times, over‑current and over‑heat protection, and is built with SMT technology for high reliability.
The document covers safety precautions, product specifications, installation and wiring procedures, functional description, power‑on operation, fault handling, maintenance, warranty information and a feedback form. It is intended for qualified personnel who install, commission and service the device. This manual is written in Chinese.
| Rated armature current levels | 5A, 10A, 20A, 30A, 50A, 75A, 100A |
|---|---|
| Output ramp time | 1‑10 s (adjustable) |
| Operating temperature range | -10 °C to +45 °C |
| Protection rating | IP00 |
The warranty lasts for twelve months from the manufacturing date, covering normal use of the product.
