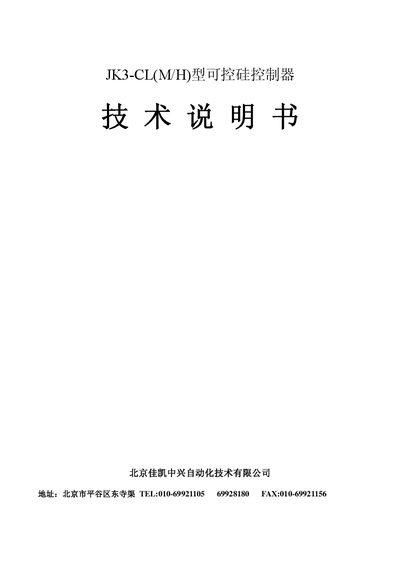

About this manual
The JK3-CL SCR controller is a three‑phase AC contact‑less switch trigger device designed for a wide range of applications, especially parallel‑compensated capacitor banks. It features high‑reliability zero‑cross triggering, self‑synchronization, integrated structure, and strong anti‑interference capability.
This manual provides an overview of the controller's specifications, operating principle, mechanical structure, wiring diagrams, installation methods, and step‑by‑step testing procedures. It includes detailed connection tables, recommended wiring practices, and safety checks before commissioning. This manual is written in Chinese.
What's inside
- Overview
- Technical Specifications
- Operating Principle
- Structure and Installation
- Wiring and Connection
- Testing and Commissioning
Specifications
| Trigger output type | Six‑channel wide pulse, transformer output |
|---|
| Trigger current peak | ≥800 mA |
|---|
| Trigger voltage peak | ≥6 V |
|---|
| Input control voltage | 5‑24 V DC (min 1 mA) or relay contact |
|---|
| Applicable AC voltage (JK3‑CL) | 400 VAC |
|---|
| Operating temperature range | -25 °C to +40 °C |
|---|
| Maximum relative humidity | ≤85 % |
|---|
| Power consumption | ≤10 W |
|---|
| Weight | 1.2 kg |
Frequently asked questions
What input control voltage does the JK3‑CL controller accept?
It accepts a DC control voltage of 5‑24 V with a minimum current of 1 mA, or it can be driven by relay contact inputs.
How should the controller be wired for external DC24 V high‑level control?
Connect terminal 2# to the DC24 V positive lead and terminal 3# to the DC24 V negative lead.
What is the recommended test load before commissioning the controller?
Use a resistive load such as a 100 W incandescent lamp or an electric furnace that matches the working voltage.
