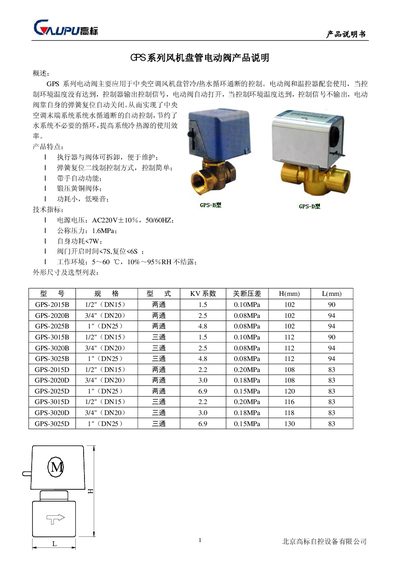

Manual for the Gaobiao GPS series fan‑coil electric valve, covering features, specifications and installation.
The GPS series electric valve is designed for controlling the water flow in central air‑conditioning fan‑coil systems. It works with a thermostat: when the room temperature is below the set point the valve opens, and when the set point is reached the valve automatically closes by spring reset.
The manual provides product features, technical data, dimensions, model options and step‑by‑step installation guidance, including positioning, wiring and flow direction requirements. This manual is written in Chinese.
| Power supply voltage | AC220V ±10 %, 50/60 Hz |
|---|---|
| Nominal pressure | 1.6 MPa |
| Power consumption | < 7 W |
| Valve opening time | < 7 s |
| Operating temperature range | 5 °C – 60 °C |
| Relative humidity range | 10 % – 95 % RH (non‑condensing) |
It requires an AC220 V supply with a tolerance of ±10 % at 50/60 Hz.
The valve opens in less than 7 seconds.
Yes, the valve should be installed horizontally with the motor above the valve body to avoid moisture.
The valve can operate between 5 °C and 60 °C.
