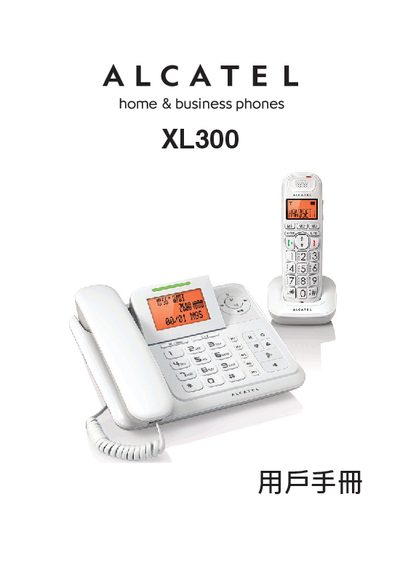

The ATLINKS XL300 telephone user manual provides safety guidelines, installation steps, feature instructions, and technical specifications.
This manual covers important safety instructions, detailed installation of the base unit, handset, and charging dock, and guidance on connecting power adapters and DSL filters. It also explains how to navigate the handset menus, make and receive calls, manage the phone book, and configure voicemail and other settings.
Additional sections include troubleshooting tips for call interference, a complete list of technical data such as dimensions, weight, RF parameters, and power requirements, and maintenance advice for cleaning and battery handling. This manual is written in Chinese.
| Handset dimensions | 56.5 × 39 × 180 mm |
|---|---|
| Base unit dimensions | 215.6 × 170 × 64 mm |
| Handset weight | 142.8 g |
| Base unit weight | 542.1 g |
| Charging adapter dimensions | 94 × 94 × 52 mm |
| Charging adapter weight | 119.0 g |
| RF frequency range | 1880 MHz – 1895 MHz |
| Power input (base unit) | 100‑240 V 50/60 Hz |
| Power output (base unit) | 6 V 450 mA |
| Battery type | NiMH rechargeable, 1.2 V 500 mAh (2 cells) |
Install the DSL filter between the telephone line and the wall socket to prevent DSL interference with the phone.
Move the phone away from other electronic devices, try a different power outlet, and ensure a DSL filter is installed if using DSL service.
