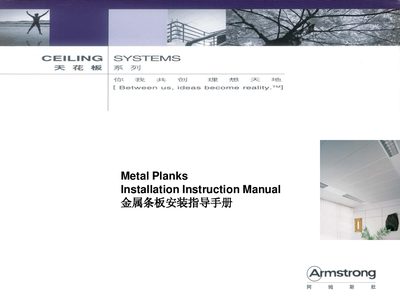

The Armstrong Metal Planks Installation Guide provides step‑by‑step instructions, storage, handling, and safety requirements for ceiling panel installation.
This guide explains how to store, handle, and install Armstrong Metal Plank ceiling systems. It covers required tools, safety precautions, and the layout of panels and suspension components.
Key steps include checking structural suitability, installing anchor fasteners and threaded rods, mounting the carrier bar, leveling the bar within 1.0 mm, and securing the panels. The manual also specifies dimensional standards, perforation details, temperature limits, and tensile load requirements for a safe and reliable ceiling system. This manual is written in Chinese.
| Standard panel sizes | 300 × 1200 mm, 300 × 1800 mm, 300 × 2400 mm, 300 × 3000 mm |
|---|---|
| Perforation diameter | 2.5 mm |
| Perforation open area | 16 % |
| Maximum installation temperature | 49 °C |
| Minimum tensile load for anchors | 135 kg |
| Maximum panel length | 6000 mm |
The anchors must be able to sustain a minimum tensile load of 135 kg.
Standard panel sizes are 300 × 1200 mm, 300 × 1800 mm, 300 × 2400 mm, and 300 × 3000 mm.
Installation can be performed in temperatures up to 49 °C.
Perforated panels have a 2.5 mm diameter hole with a 16 % open area.
