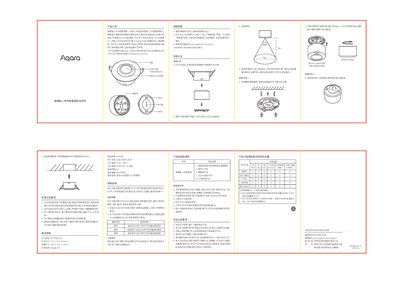

This manual covers the installation, setup, and usage of the Aqara RTCGQ13LM high-precision human sensor for smart home automation.
The Aqara RTCGQ13LM is a high-precision human sensor designed for smart home environments. It features a sensitive probe, precision amplification circuit, and high-density Fresnel lens to detect even minor human movements, such as sitting still. Operating on the Zigbee 3.0 wireless communication protocol, it connects to a gateway to trigger automation scenes and send remote notifications to a mobile phone. The sensor can be installed on a ceiling or embedded into a ceiling drop ceiling. This manual is written in Chinese.
| Wireless Connection | Zigbee 3.0 |
|---|---|
| Detection Distance | 5m |
| Detection Angle | Approx. 60° |
| Detection Range | Diameter 6m circle |
| Operating Temperature | -10℃~+50℃ |
| Operating Humidity | 0~95% RH, no condensation |
| Product Dimensions | 74 × 74 × 43.3mm |
| Battery Model | CR2450 |
Yes, it can detect minor movements even if a person is sitting still.
The product should be installed at a height of 2 meters or more.
Do not install it near appliances with rising surface temperatures like refrigerators or microwaves, or areas exposed to sunlight.
