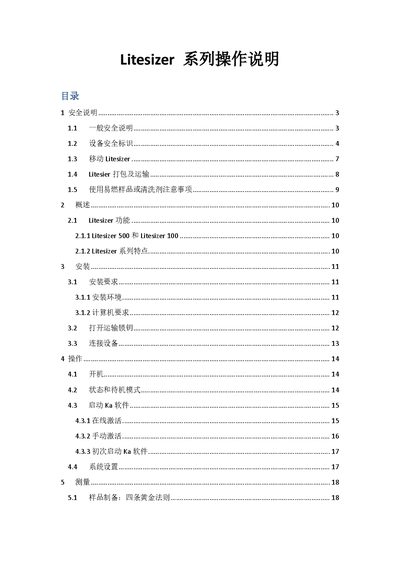

The Anton Paar Litesizer operation manual provides safety guidelines, installation steps, and measurement procedures for the Litesizer 500 and 100 instruments.
This manual covers all essential safety information for operating the Litesizer series, including general safety rules, laser safety markings, and handling of flammable samples. It emphasizes that only authorized personnel should install and service the instrument and that all users must receive proper training.
The document also details installation requirements, software activation, and step‑by‑step operating instructions for particle size (DLS), zeta potential (ELS), molecular weight (SLS), transmittance, and refractive index measurements. Maintenance procedures, high/low temperature usage, and technical specifications are provided in the appendices. This manual is written in Chinese.
| Dimensions | 460 mm x 485 mm x 135 mm |
|---|---|
| Weight | 18 kg (Litesizer 500), 16.3 kg (Litesizer 100) |
| Power Supply | 12 V DC, 230 VAC 50/60 Hz |
| Operating Temperature Range | +10 °C to +35 °C |
| Operating Humidity | 35 % – 80 % non‑condensing |
| Noise Level | < 70 dB |
| Air Supply Pressure | 0.4 – 0.8 bar (or 1.4 – 1.8 bar) |
Only Anton Paar‑authorized service engineers may perform maintenance or repair on the Litesizer.
The supplied air must be clean, dry, oil‑free and meet ISO 8573.1 class 1.3.1 specifications.
