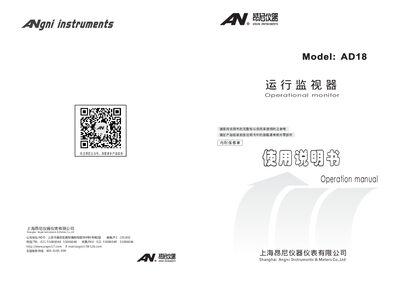

User manual for the Angni AD18 operation monitor that shows speed, run time and battery status for laboratory high‑shear dispersers.
The AD18 operation monitor is a dedicated accessory for the AD18 laboratory high‑shear disperser. It consists of a monitor unit, data cable, mounting bracket and charger, and uses an embedded micro‑processor with an OLED display to provide real‑time speed, timing and battery information.
The manual describes the monitor’s specifications, how to mount it on the disperser, connect the data cable, charge the internal battery, and operate the device, including activation of the screen and power‑saving screen‑saver mode. This manual is written in Chinese.
| Maximum speed display | 6000 rpm |
|---|---|
| Display size | 34 × 19 mm |
| Input voltage | AC 100‑240 V, 50/60 Hz |
| Charger output | 5.0 V = 550 mA |
| Battery capacity | 2800 mAh |
Insert the charger’s output plug into the monitor’s charging input socket and then plug the charger into a power outlet.
The screen shows dynamic speed, run time, battery level and whether the charger is connected.
The monitor can display speeds up to 6000 rpm.
