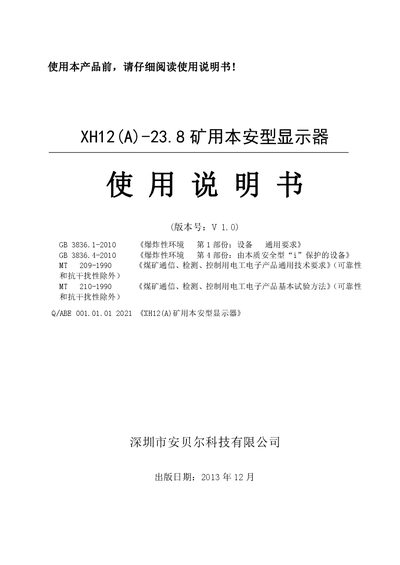

The Anbel XH12(A)-23.8 mining intrinsically safe display user manual provides operation, installation, and maintenance instructions for underground…
The XH12(A)-23.8 is an intrinsically safe display designed for coal‑mine environments, offering video reception and monitoring capabilities under hazardous conditions. It complies with GB3836 and MT standards for explosion‑proof equipment.
The manual covers safety requirements, installation steps, wiring, operation procedures, troubleshooting, and regular maintenance to ensure reliable performance in mines. This manual is written in Chinese.
| Display size | 23.8 inches |
|---|---|
| Resolution | 1920 × 1080 (1080P) |
| Power input voltage | DC 12 V |
| Maximum current | ≤ 1.5 A |
| Ingress protection | IP54 |
| Operating temperature range | 0 °C – +40 °C |
| Relative humidity (operating) | ≤ 95 % (at +25 °C) |
| Vibration resistance | 50 m/s² |
| Shock resistance | 500 m/s² |
| Weight | 10 kg |
Check that the power supply is connected and verify that the remote‑control receiver board and communication lines are functioning.
Use a fine brush and a soft, dry cotton cloth to wipe the surface, keeping the LED panel clean.
Yes, it is designed for explosive gas environments such as coal‑mine tunnels, provided there are no corrosive gases that damage insulation.
A 5‑core aviation plug (5芯航插) supplies power to the display.
