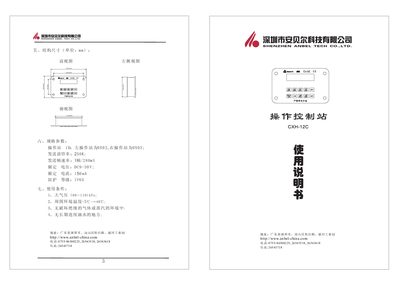

The Anbel Operation Control Station User Manual provides specifications, installation, and operating instructions for use in special environments such as…
This manual describes the Anbel operation control station, a waterproof (IP65) device designed for harsh mining environments. It outlines physical dimensions, electrical ratings, and environmental limits such as temperature and atmospheric pressure.
Key functions include left/right station mode selection, CAN2.0 communication, and a data transmission cycle of about 280 ms. The front panel shows operation status, while the back panel provides identification and connection details. Safety features such as an always‑active emergency stop are also covered. This manual is written in Chinese.
| Rated Voltage | DC9‑30V |
|---|---|
| Rated Current | 150 mA |
| Protection Level | IP65 |
| Operating Temperature | -5 ℃ ~ +40 ℃ |
| Atmospheric Pressure | 80 ~ 110 kPa |
| Baud Rate | 250 kbaud |
| Frame Rate | 1 frame / 280 ms |
| Front View Dimensions | 150.0 mm × 176.0 mm × 76.0 mm |
Press the “功能” (function) key together with the “急停” (emergency stop) key during power‑up or when the display shows “检测中…”, then select left or right with the corresponding key and confirm within 10 seconds; otherwise the setting is cancelled.
The station sends data approximately every 280 ms; when no operation is performed it transmits a 16‑bit value of 00 00H.
The device is rated IP65, providing protection against dust and water ingress.
