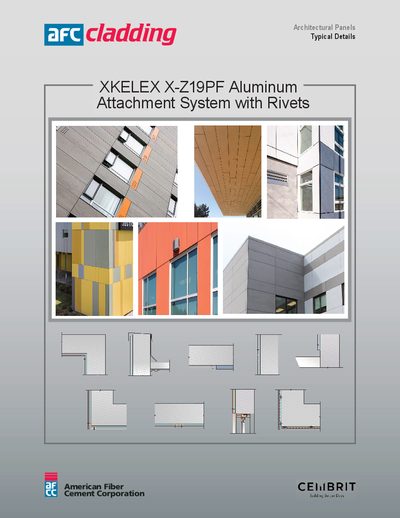

American Fiber Cement Corporation XKELEX X-Z19PF Aluminum Attachment System Installation Guide

Installation guide for the XKELEX X-Z19PF Aluminum Attachment System used with fiber cement panels, covering joints and terminations.

Brand: American Fiber Cement Corporation
Category: Other
Document type: Installation Guide
Language: English
Pages: 26
File format: PDF
File size: 4.2 MB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: BE20616ED1B0EEE979869E637706B512
PDF: American Fiber Cement Corporation XKELEX X-Z19PF Aluminum Attachment System Installation Guide PDF

About this manual

This document provides typical details and installation instructions for the XKELEX X-Z19PF Aluminum Attachment System. It is designed for use with fiber cement panels and covers various structural connections.

What's inside

Top Panel @ Coping
Top Panel @ Soffit
Top Panel @ F.C.P Soffit
Horizontal Panel Joint
Bottom of Panel @ Wall Base
Bottom of Panel @ Open Termination
Bottom of Panel @ Low Roof Flashing
Bottom of Panel @ Soffit
Bottom of Panel @ Window Head
Panel Edge @ Butt Joint

Frequently asked questions

What is the typical spacing for panel vertical and horizontal joints?

The typical spacing should be 3/8".

What type of attachment system does this guide cover?

It covers a One-Layer Aluminum Attachment System with rivets.
