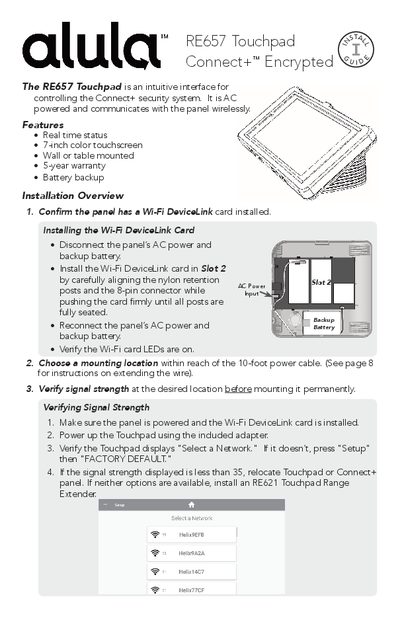

The Alula RE657 Touchpad Connect+ Encrypted Installation Guide provides step‑by‑step setup, mounting, enrollment, and troubleshooting instructions.
The RE657 Touchpad Connect+ Encrypted is a 7‑inch color touchscreen interface for the Alula Connect+ security system. It can be wall‑ or table‑mounted, runs on AC power with battery backup, and communicates wirelessly with the panel.
The guide covers installing the Wi‑Fi DeviceLink card, verifying signal strength, mounting options (both with and without disassembly), enrolling the Touchpad to a panel, menu navigation, settings, troubleshooting, warranty information, and technical specifications.
| Wireless Range | ~300 feet in open air |
|---|
Power up the Touchpad, ensure it displays "Select a Network," and check that the Wi‑Fi signal strength is 35 or higher; otherwise relocate the Touchpad or use an RE621 Range Extender.
Press the enroll button on the side of the panel until it beeps, then select the desired panel on the Touchpad and follow the discovery and authentication steps until the DISARMED screen appears.
Tap the "Restart" button in the side menu to restart the Touchpad and try enrollment again.
