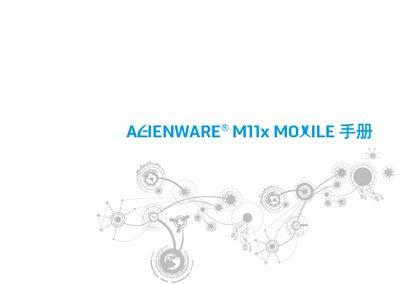

The Alienware M11x laptop user manual provides setup, usage, maintenance, and troubleshooting instructions.
This manual guides you through installing the Alienware M11x laptop, including safety warnings, power‑adapter connection, and initial setup steps. It also describes the laptop’s hardware features such as the keyboard, display, ports, and battery management.
Later sections cover component replacement (battery, memory, hard drive), basic specifications, system recovery options, and detailed safety precautions for servicing the device. Contact information for Dell/Alienware support is provided at the end. This manual is written in Chinese.
| Height (front to back) | 32.7 mm (1.29 in) |
|---|---|
| Width | 285.7 mm (11.25 in) |
| Thickness | 233.3 mm (9.19 in) |
| Weight (incl. 8‑cell battery) | 1.99 kg (4.39 lb) |
| Processor | Intel Pentium Dual Core, Intel Core 2 Duo |
| System Chipset | Intel GS45 |
| Memory Slots | 2 internal DDR3 SODIMM slots |
| Supported Memory Capacity | 1 GB, 2 GB, 4 GB (configurable up to 8 GB) |
| Memory Type | DDR3 1066 MHz (dual‑channel) |
| Ports and Connectors | IEEE‑1394, RJ45 10/100 Mbps, 3×USB 2.0 (one PowerShare), VGA, HDMI, DisplayPort, audio jacks, 3‑in‑1 card reader, SIM card slot |
The M11x provides two internal removable DDR3 SODIMM slots for memory upgrades.
The laptop measures 32.7 mm high, 285.7 mm wide, 233.3 mm thick and weighs about 1.99 kg with the 8‑cell battery installed.
