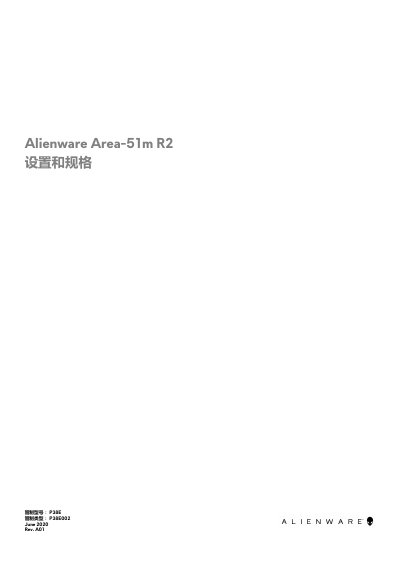

Setup guide and full specifications for the Alienware Area-51m R2 gaming laptop.
This manual provides step‑by‑step setup instructions for the Alienware Area‑51m R2, including power‑adapter connection, graphics‑amplifier usage, and keyboard shortcuts. It also lists detailed hardware specifications such as dimensions, weight, processor options, memory, storage, and connectivity.
Additional sections cover the Alienware Command Center features, wireless and audio modules, and contact information for support. The document is intended for end users who need to configure the laptop and understand its capabilities. This manual is written in Chinese.
| Front Height | 27.65 mm (1.09 in) |
|---|---|
| Width | 402.6 mm (15.85 in) |
| Maximum Weight | 4.10 kg (9.04 lb) with GTX 1660 Ti |
| Processor Options | 10th‑gen Intel Core i7‑10700 / i7‑10700K / i9‑10900 / i9‑10900K |
| Chipset | Intel Z490 |
| Memory Type | DDR4 |
| Maximum Memory Capacity | 64 GB |
| Primary Storage Interface | PCIe NVMe 3.0 x4 up to 32 Gbps |
| Wireless Module | Killer AX1650i, Wi‑Fi a/b/g/n/ac/ax, Bluetooth 5.1 |
| Audio Controller | Realtek ALC3282‑CG |
The Area‑51m R2 comes with two power adapters; it can operate with a single adapter, but both are recommended for maximum gaming performance.
It features an RGB single‑key backlight keyboard, available in either rubber‑dome or Cherry mechanical switch versions.
By using the Alienware Graphics Amplifier; connect the HDMI cable to the Amplifier’s GPU and the USB 3.2 cable to the laptop or Amplifier.
