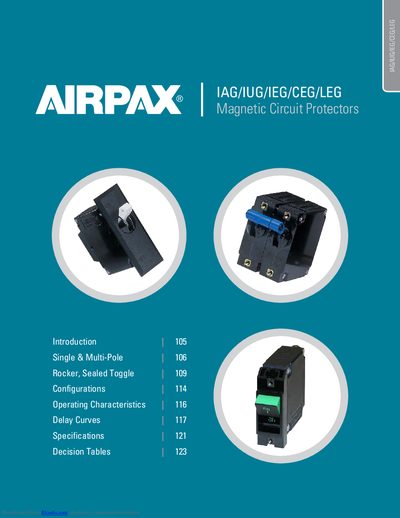

The Airpax IAG/IUG/IEG/CEG/LEG series magnetic circuit protectors provide low‑cost power switching, reliable protection, and detailed specifications for…
The Airpax IAG/IUG/IEG/CEG/LEG magnetic circuit protectors are hydraulic magnetic devices designed for data processing, medical, broadcast, vending, military and other precision applications. They offer a "trip free" action that opens the circuit even when the handle is held in the ON position.
These protectors are available in single‑pole, multi‑pole, rocker, sealed‑toggle and snap‑in styles, with ratings from 0.050 A to 50 A, and support various mounting options such as screw terminals, push‑on terminals and snap‑in panels. They meet UL, CSA, VDE, CCC and CE approvals.
| Current rating range | .050 to 50 A |
|---|---|
| Pole configurations | single, two, three, four pole |
| Mounting options | screw terminals, push‑on terminals, snap‑in |
| Inrush pulse tolerance (example delay) | 10 × rated current (approx) |
The protectors can be mounted with screw terminals, push‑on terminals, or as snap‑in units.
The snap‑in protectors are rated from 0.050 A up to 50 A.
The circuit trips in an overload condition even if the handle is held in the ON position; the delay mechanism senses the fault and opens the contacts.
