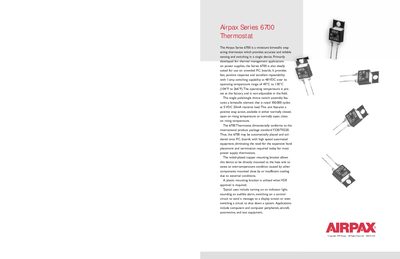

The Airpax Series 6700 is a miniature bimetallic snap acting thermostat which provides accurate and reliable sensing and switching in a single device. Primarily developed for thermal management applications on power supplies, the Series 6700 is also ideally suited for use on crowded P.C. boards. It provides fast, positive response and excellent repeatability with 1 amp switching capability at 48 VDC over its operating temperature range of 40°C to 130°C (104°F to 266°F).The operating temperature is pre-set at the factory and is non-adjustable in the field. The single pole/single throw switch assembly features a bimetallic element that is rated 100,000 cycles at 5 VDC 20mA resistive load.This unit features a positive snap action, available in either normally closed, open on rising temperature or normally open, close on rising temperature. The 6700 Thermostat dimensionally conforms to the international product package standard Y220/T0220. Thus, the 6700 may be automatically placed and soldered onto P.C. boards with high speed automated equipment, eliminating the need for the expensive hand placement and termination required today for most power supply thermostats. The nickel-plated copper mounting bracket allows this device to be directly mounted to the heat sink to sense an over-temperature condition caused by other components mounted close by or insufficient cooling due to external conditions. A plastic mounting bracket is utilized when VDE a
The Airpax Series 6700 is a compact bimetallic snap‑acting thermostat designed for thermal management in power supplies, PC boards, computers, aircraft, automotive and test equipment. It provides fast, positive response with a single‑pole/single‑throw switch rated for up to 48 VDC and 100 k cycles.
The device conforms to the Y220/T0220 package standard, can be mounted with a nickel‑plated copper bracket or a VDE‑approved plastic bracket, and is sealed with high‑temperature epoxy for wave soldering. Detailed specifications include contact resistance, dielectric strength, insulation resistance, and environmental ratings.
| Contact Resistance | 50 mΩ max |
|---|---|
| Contact Rating (48 VDC) | 30,000 cycles |
| Contact Rating (5 VDC) | 100,000 cycles at 20 mA |
| Operating Temperature Range | 40 °C to 130 °C |
| Weight | ≈ 0.5 g |
| Insulation Resistance | 100 MΩ at 500 VDC |
| Dielectric Strength | 1480 VAC 60 Hz |
| Seal | Epoxy sealed for wave soldering |
It operates from 40 °C (104 °F) up to 130 °C (266 °F).
The thermostat is rated for 100,000 cycles at 5 VDC with a 20 mA resistive load.
