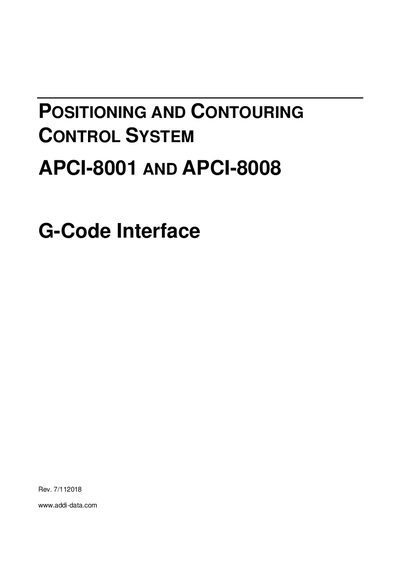

Addi-Data APCI-8001 and APCI-8008 G-Code Interface Manual

About this manual

The document describes the McuWIN Windows application used to edit, check and run G‑code programs on the APCI‑8001 and APCI‑8008 positioning and contouring control systems. It details the user interface, status displays, and initialization steps performed automatically by the software.

It also lists all supported G‑codes and M‑codes, explains features such as emergency power‑off monitoring, limit‑switch handling, tool‑radius correction, and provides error‑message references and version change notes for the interface software.

What's inside

• Procedure for processing G‑code program files
• Functionality of McuWIN
• Description of G‑codes implemented
• M‑codes
• Other codes
• Comments
• Conditional program execution
• Loops
• Variables
• Handling McuWIN

Frequently asked questions

How can the font size be changed in the McuWIN editor?

Turn the mouse wheel while holding down the left mouse button to adjust the font size.
