aPCI-1500 is a digital I/O card produced by Siemens Germany. It has 32 digital I/O ports and 24V/12V power supply. It can be used on PC/104-PLUS and CompactPCI buses.

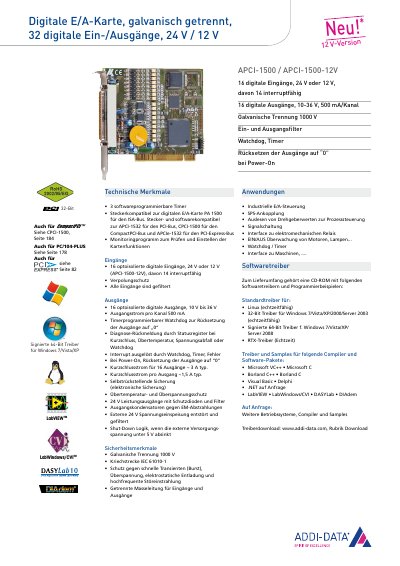

This document provides technical specifications for the ADDI-DATA APCI-1500 and APCI-1500-12V digital I/O cards. These PCI-based cards feature 32 galvanically isolated digital channels (16 inputs and 16 outputs) designed for industrial E/I control, signal switching, and machine interfacing. The APCI-1500-12V variant specifically supports 12V input logic alongside standard 24V options. This manual is written in German.
| Number of Digital Inputs | 16 |
|---|---|
| Number of Digital Outputs | 16 |
| Input Voltage (APCI-1500) | 24 V |
| Input Voltage (APCI-1500-12V) | 12 V |
| Output Voltage Range | 10 V bis 36 V |
| Output Current per Channel | 500 mA |
| Galvanic Isolation | 1000 V |
| System Bus | PCI 32-Bit |
| Operating Temperature | 0 bis 60 °C |
| Number of Timers | 3 |
Yes, 14 of the 16 input channels are interrupt-capable.
The APCI-1500 supports 24 V inputs, while the APCI-1500-12V version supports 12 V inputs.
The maximum output current per channel is 500 mA.
The card provides galvanic isolation of 1000 V between the PC and peripherals.
