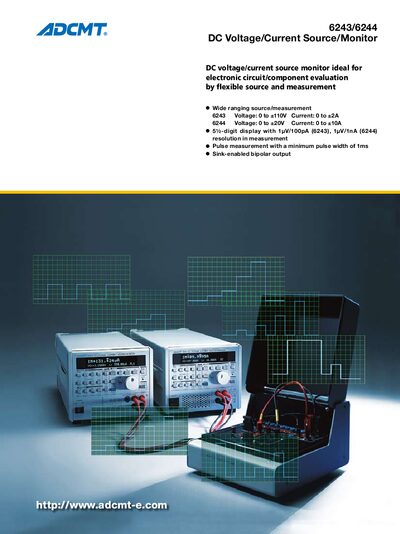

Technical specifications for the ADC 6243/6244 DC voltage/current source and monitor.
The ADC 6243/6244 is a dual‑unit DC voltage and current source/monitor designed for electronic component evaluation. It offers wide source ranges, high‑resolution measurement, pulse‑width capability, and sink‑enabled bipolar output.
The document provides detailed specifications, source modes, accuracy data, noise performance, interface options, and optional accessories for both models, along with operating and storage environment limits.
| Voltage range (6243) | 0 to ±110 V |
|---|---|
| Current range (6243) | 0 to ±2 A |
| Voltage range (6244) | 0 to ±20 V |
| Current range (6244) | 0 to ±10 A |
| Display resolution (6243) | 1 µV / 100 pA |
| Minimum pulse width | 1 ms |
| Maximum output current (6243) | ±2 A at up to ±32 V |
| Maximum output current (6244) | ±10 A at up to 7 V (±4 A at up to 20 V) |
| Power consumption (6243) | 340 VA or less |
| Dimensions (6243) | 212 mm × 177 mm × 450 mm |
| Operating temperature (6243) | 0 °C to +50 °C |
The device can measure pulses as short as 1 ms.
Model 6243 provides a voltage range of 0 to ±110 V and a current range of 0 to ±2 A.
Model 6244 can deliver up to ±10 A at 7 V (or ±4 A at 20 V).
The units operate from 0 °C to +50 °C (0 °C to +40 °C for the 6244 in certain ranges).
