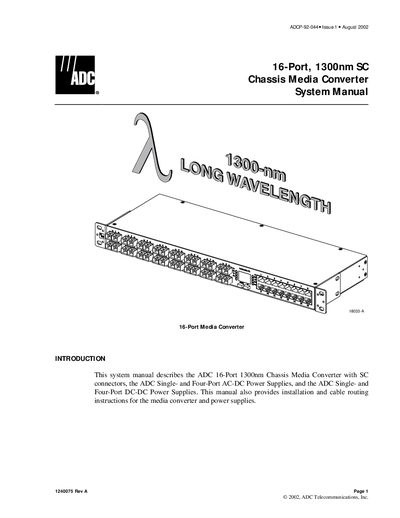

This document describes the ADC 16-Port 1300nm Chassis Media Converter with SC connectors, the ADC Single- and Four-Port AC-DC Power Supplies, and the ADC Single- and Four-Port DC-DC Power Supplies. This manual also provides installation and cable routing instructions for the media converter and power supplies.
This system manual describes the ADC 16‑Port 1300nm SC chassis media converter, which interfaces Ethernet electrical signals on 16 LAN segments with optical signals on 16 fiber‑optic LAN segments. It also covers the associated single‑ and four‑port AC‑DC and DC‑DC power supplies used to power the converter units.
The manual includes safety admonishments, installation and cable‑routing instructions, detailed specifications, power‑up and checkout procedures, and customer assistance contact information. User interface items such as power indicators, activity LEDs, and port selection controls are also documented.
| Number of ports | 16 |
|---|---|
| Fiber optic ports | 16 (1‑16) |
| Copper RJ‑45 ports | 16 (1‑16) |
| Power supply voltage | +12 VDC |
It is certified as a Class A digital device under Part 15 of the FCC regulations.
The converter provides 16 ports for both fiber‑optic and copper connections.
