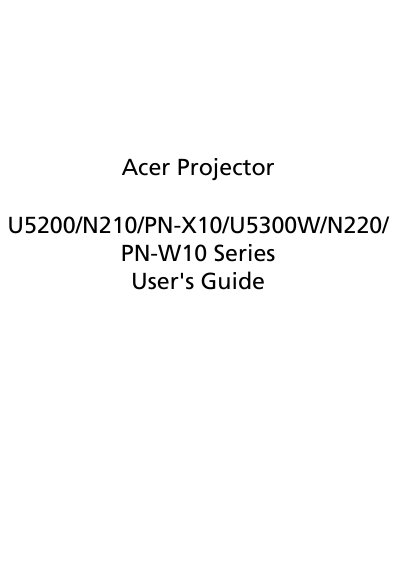

The Acer U5200/N210/PN-X10/U5300W/N220/PN-W10 series projector user manual provides safety instructions, setup steps, operation guidance, and technical…
This guide covers safety and comfort information, proper handling, cleaning, and servicing of the Acer projector series. It explains how to connect power, avoid hazards, and maintain the device, including lamp replacement and ventilation requirements.
The manual also details installation, image adjustment, remote control functions, on‑screen menus, and troubleshooting. A full specifications table lists resolution, lens, throw ratio, lamp type, power consumption, dimensions, and connector options.
| Native resolution (U5200/N210/PN‑X10) | XGA (1024 × 768) |
|---|---|
| Maximum resolution (all models) | 1920 × 1080 |
| Projection lens focal length | F = 2.65 mm, f = 3.50 mm |
| Screen size range (U5300W/N220/PN‑W10) | 70" – 300" (178 cm – 762 cm) |
| Throw ratio (U5200/N210/PN‑X10) | 0.30 : 1 |
| Lamp type | Philips 230 W user‑replaceable UHP |
| Power supply | Universal AC 100‑240 V, 50/60 Hz |
| Power consumption | 380 W |
| Weight | Approx. 7.0 kg (15.4 lb) |
| Dimensions (W × D × H) | 422 mm × 342 mm × 143 mm |
Use a soft cloth moistened with mild detergent or lens‑cleaning paper; avoid abrasive pads, solvents, or volatile chemicals.
It uses a universal AC input ranging from 100 V to 240 V at 50 Hz or 60 Hz.
Allow the projector to cool for about 45 minutes, then follow the lamp‑replacement instructions in the manual.
Yes, but the total ampere rating of the equipment plugged into the extension cord must not exceed the cord’s rating, and the overall load must stay below 80 % of the circuit rating.
