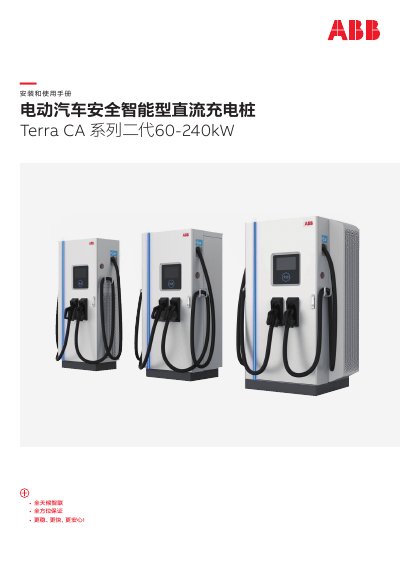

This manual provides installation, operation, maintenance, and troubleshooting instructions for the ABB Terra CA Series II 60-240kW DC electric vehicle charger.
The document is a user manual for the ABB Terra CA Series II 60-240kW intelligent DC charging pile. It covers safety declarations, product specifications, installation procedures, usage instructions, maintenance guidelines, and fault handling. The charger supports various power ratings from 60kW to 240kW and features smart connectivity, remote diagnostics, and compliance with national standards for electric vehicle charging. This manual is written in Chinese.
| Rated Power | 60kW, 120kW, 180kW, or 240kW |
|---|---|
| Input Voltage | 380VAC ±15%, 50Hz |
| Output Voltage | 200-1000 V DC |
| Protection Rating | IP54 |
| Operating Temperature | -20℃~+50℃ |
The maximum output current for a single gun is 200A or 250A depending on the specific model configuration.
Yes, it supports global all-weather outdoor installation and use.
